Payne Gas furnace PG96VTAB60100C**

Schedule Service Check Availability
Payne Payne AHRI Furnace - PG96VTAB Gas furnace Repair, maintenance, and replacement planning

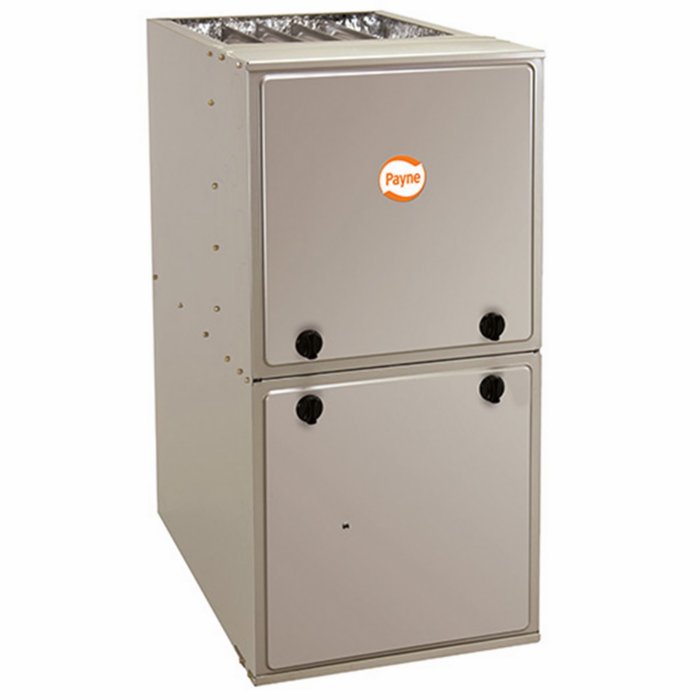

Payne PG96VTAB60100C** product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: PG96VTAB60100C**
  • AHRI records represented: 66
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.9
  • AHRI refrigerant: R-454B
  • Verified catalog model: PG96VTAB60100C
  • Verified product family: PG96VTAB
  • Verified catalog brand: Payne
  • Catalog Model: PG96VTAB60100C
  • Manufacturer Number: PG96VTAB60100C
  • Catalog SKU: 1604089214424670
  • Catalog Brand: Payne
  • Product Family: PG96VTAB
  • AFUE: 95
  • Air Flow Direction: Multi-Position
  • BTU Input: 100,000
  • BTU Output: 63,000-97,000
  • Blower Motor HP: 1
  • Blower Motor RPM: 400-1,200
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 10"
  • Brand: Payne
  • CFM: 2,005
  • CFM Heating: 1,435-1,865
  • Cabinet Width: 21
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: YES
  • FER Compliant: YES
  • Filter Size: 20*25
  • Fuel Type: Natural Gas
  • Full Load Amps: 10.4-13.9
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 35
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29.5
  • Maximum Overcurrent Protection (MOCP): 20
  • OPT Code: 1PPG96VTAB60100C
  • Phase: Single
  • Prop 65: YES
  • Rated Current Amps (RCA): 10
  • Rated Load Amps (RLA): 11.7
  • Stages Heating: 2
  • Voltage: 115 VAC
  • Weight: 172
  • Width: 21

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 216736028

AHRI 216736028 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CAA**3721AM*.
Eligible Central HP <5.4 tons

AHRI 216736872

AHRI 216736872 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CSAH*2412AM*.
Eligible Central HP <5.4 tons

AHRI 216737861

AHRI 216737861 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CSAH*3012AM*.
Eligible Central HP <5.4 tons

AHRI 216738861

AHRI 216738861 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217393957

AHRI 217393957 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4812AM*.
Eligible Central HP <5.4 tons

AHRI 217394031

AHRI 217394031 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217394105

AHRI 217394105 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217394169

AHRI 217394169 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4821AM*.
Eligible Central HP <5.4 tons

AHRI 217394230

AHRI 217394230 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Eligible Central HP <5.4 tons

AHRI 217394291

AHRI 217394291 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4221AM*.
Loading more

Service planning

How GreenFlow handles PG96VTAB60100C** requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
