Payne Gas furnace PG97VTAA60100C**

Schedule Service Check Availability
Payne Payne AHRI Furnace - PG97VTA Gas furnace Repair, maintenance, and replacement planning

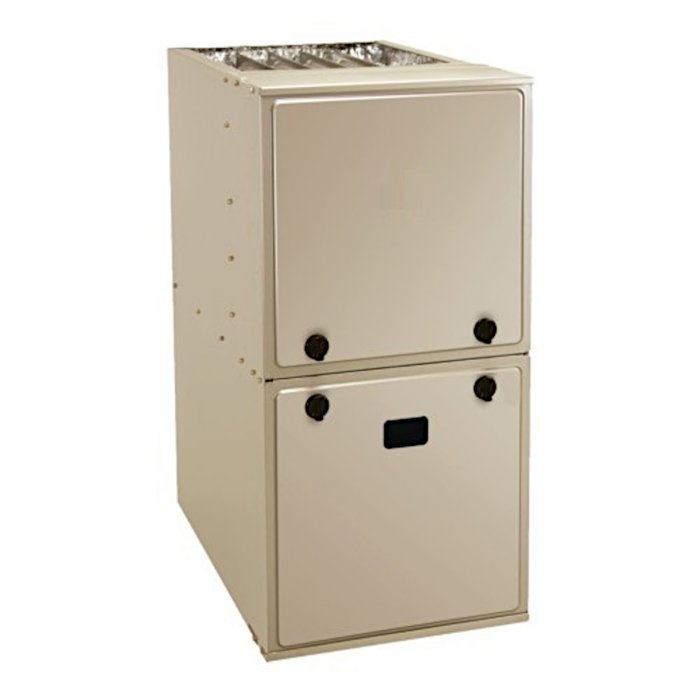

Payne PG97VTAA60100C** product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: PG97VTAA60100C**
  • AHRI records represented: 59
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.9
  • AHRI refrigerant: R-454B
  • Verified catalog model: PG97VTAA60100C
  • Verified product family: PG97VTA
  • Verified catalog brand: Bryant, Payne
  • Catalog Model: PG97VTAA60100C
  • Manufacturer Number: PG97VTAA60100C
  • Catalog SKU: 1604089265831816
  • Catalog Brand: Bryant, Payne
  • Product Family: PG97VTA
  • AFUE: 96.1-97
  • Air Flow Direction: Multi-Position
  • BTU Input: 65,000-100,000
  • BTU Output: 63,000-97,000
  • Blower Motor HP: 1
  • Blower Motor RPM: 600-1,200
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 10"
  • Brand: Bryant, Payne
  • CFM: 340-2,170
  • CFM Heating: 1,390-1,700
  • Cabinet Width: 21
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: YES
  • FER Compliant: YES
  • Filter Size: 20" x 25" x 3/4
  • Fuel Type: Natural Gas or LP
  • Full Load Amps: 11.5
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 35
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29.5
  • Maximum Overcurrent Protection (MOCP): 20
  • OPT Code: 1PPG97VTAA60100C
  • Phase: Single
  • Prop 65: YES
  • Rated Load Amps (RLA): 11.5
  • Stages Heating: 2
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 170
  • Width: 21

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 216736077

AHRI 216736077 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CAA**3721AM*.
Eligible Central HP <5.4 tons

AHRI 216736934

AHRI 216736934 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CSAH*2412AM*.
Eligible Central HP <5.4 tons

AHRI 216737923

AHRI 216737923 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CSAH*3012AM*.
Eligible Central HP <5.4 tons

AHRI 216738923

AHRI 216738923 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217393969

AHRI 217393969 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4812AM*.
Eligible Central HP <5.4 tons

AHRI 217394043

AHRI 217394043 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217394117

AHRI 217394117 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217394178

AHRI 217394178 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4821AM*.
Eligible Central HP <5.4 tons

AHRI 217394239

AHRI 217394239 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Eligible Central HP <5.4 tons

AHRI 217394300

AHRI 217394300 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4221AM*.
Loading more

Service planning

How GreenFlow handles PG97VTAA60100C** requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
