Heat pump water heater
Back to RELIANCE WATER HEATERS products

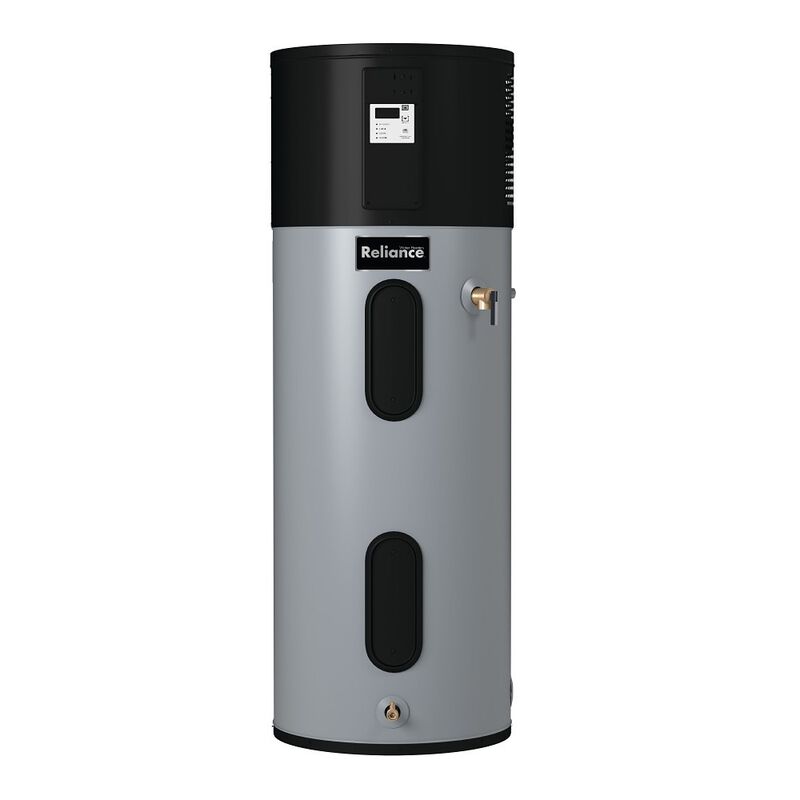

RELIANCE WATER HEATERS 10-80-DHPTV 2**
- Category
- Heat pump water heater
- Series
- Not assigned in catalog
- Model record
- Model pattern
- Certifications
- 1 linked
Canonical product data
Specifications
Product specifications
- Product Type
- Hybrid/Electric Heat Pump
- Communication Hardware Architecture
- B - Manufacturer-specific external communication module (s) and/or device (s),C - Open standards-based communication port on the appliance with open standards-based communication module
- Compressor Lower Ambient Cutoff (Boundary: lower, Operating Transition: compressor_to_resistance_only, Temperature Role: ambient)
- 37 degF
- Compressor Upper Ambient Cutoff (Boundary: upper, Operating Transition: compressor_to_resistance_only, Temperature Role: ambient)
- 120 degF
- Connected Capable
- Yes
- Connects Using
- CTA-2045
- Demand Response Requires Broadband
- Yes
- Dr Protocol
- CTA-2045-A, CTA-2045-B
- Fuel Type
- Electric
- Heat Pump Water Heater Form
- 120 Volt Integrated HPWH
- Load Up Functionality
- Advanced Load Up
- Market Availability
- United States
- Maximum Current
- 15 A
- Optional Operational Mode Functionality
- Relative Price Signals, Set Point Adjustment
- Rated Electrical Input
- 0.9 kW
- Refrigerant Type
- R-513A
- Refrigerant With Gwp Claim
- R-513A (GWP:630)
- Storage Volume
- 82 gal_source
- Supply Voltage
- 120 V
- Tank Diameter
- 27 in
- Tank Height
- 92 in
- Time Of Use Schedule Capable
- Yes
- Annual Electricity Consumption (Draw Pattern: High-Usage)
- 1654 kWh/year
- Draw Pattern
- High-Usage
- First Hour Hot Water Delivery (Delivery Period: first_hour, Draw Pattern: High-Usage)
- 93 gal_source
- Sound Pressure Level
- 45 dBA
- Uniform Energy Factor (Draw Pattern: High-Usage)
- 3
