RunTru A5HL5024A1

Category
Air-source heat pump
Series
A5HL5
Model record
Exact model
Certifications
40 linked

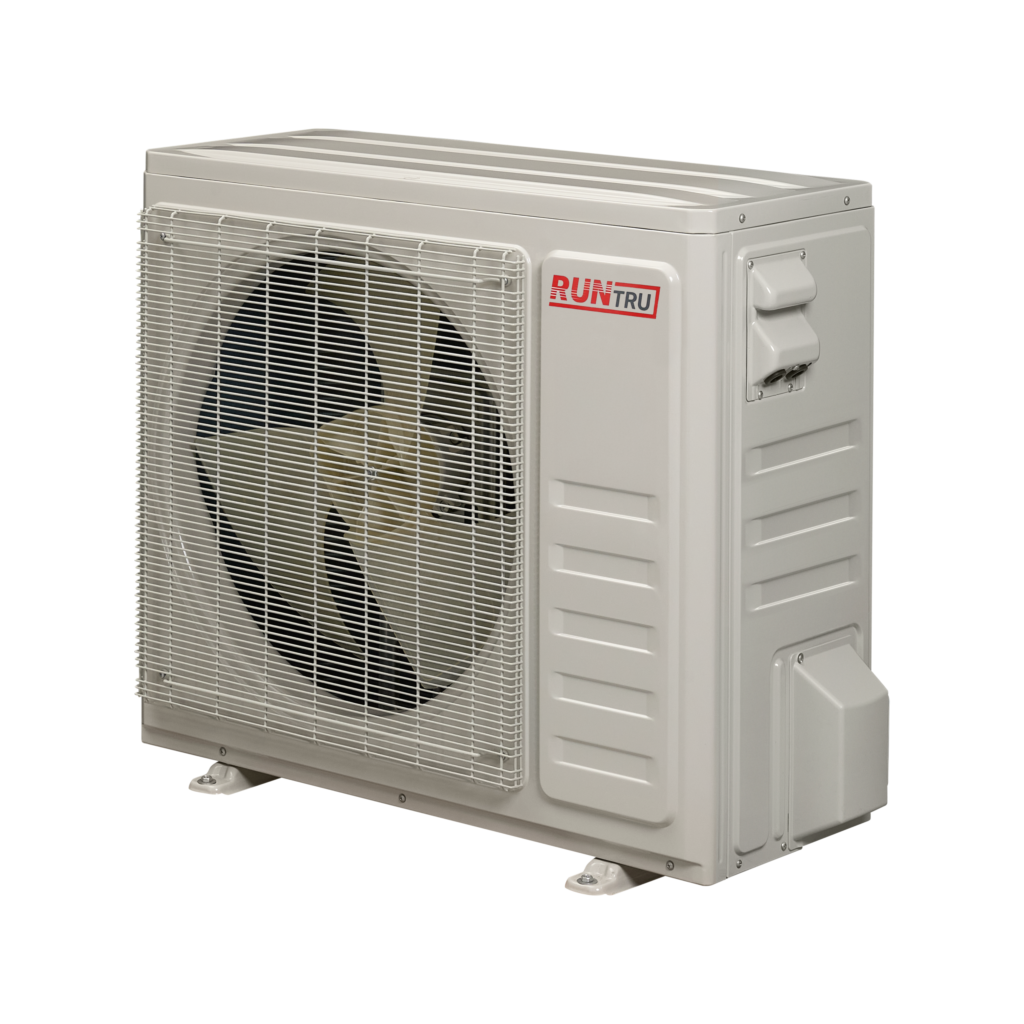

RunTru A5HL5024A1 product image

Canonical product data

Specifications

Product Type
HP - Split System
Compressor Staging
Two-stage
Connected Capable
No
Cooling Capacity (Mode: cooling)
23000 Btu/h
Eer2 (Mode: cooling)
11.7 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
18000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
23000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
21000 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
1.75
Hspf2 (Mode: heating)
8.1 Btu/(W.h)
Refrigerant With Gwp Claim
R-454B (GWP:470 | Lower GWP)
Seer2 (Mode: cooling)
16 Btu/(W.h)

Matched systems

Certificates

20 verified catalog relationships.

Search AHRI
ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 216776156

AHRI 216776156 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit A5AHV002A1B3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194752

AHRI 217194752 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194753

AHRI 217194753 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194754

AHRI 217194754 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194755

AHRI 217194755 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194756

AHRI 217194756 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194757

AHRI 217194757 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 217194758

AHRI 217194758 identifies a HP - Split System from RunTru with outdoor unit A5HL5024A1 and indoor unit 5TXCB003AS3.
