Air-source heat pump

Back to RUSSELL products

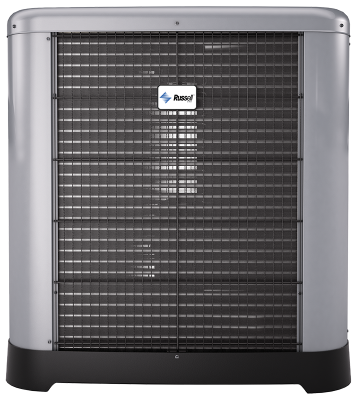

RUSSELL RD17AZ60AJ3N

Request Service Equipment Quote

Category: Air-source heat pump
Series: VANTIX
Model record: Exact model
Certifications: 15 linked

Canonical product data

Specifications

Product Type: HP - Split System
Communication Hardware Architecture: B - Manufacturer-specific external communication module(s) and/or device(s)
Compressor Staging: Continuously variable
Connected Capable: Yes
Connects Using: Wi-Fi
Cooling Capacity (Mode: cooling): 55000 Btu/h
Demand Response Requires Broadband: Yes
Dr Protocol: OpenADR
Eer2 (Mode: cooling): 10 Btu/(W.h)
Features Enabled By Primary Communication Module: Demand response via OpenADR with cloud-based VEN
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 51000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 60000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 49500 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 1.75
Hspf2 (Mode: heating): 8.1 Btu/(W.h)
Installation Capabilities: Refrigerant charge verification, Test mode for manual measurements
Refrigerant With Gwp Claim: R-410A (GWP:2088)
Seer2 (Mode: cooling): 18 Btu/(W.h)
