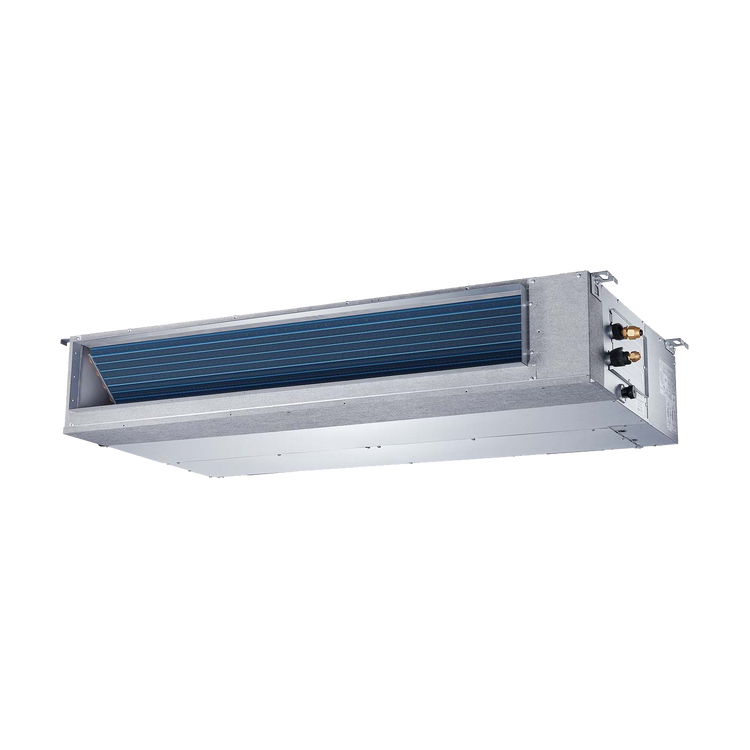

Tempstar DLFPHAH09XAK

Request Service Equipment Quote

Category: Indoor unit
Series: Not assigned in catalog
Model record: Exact model
Certifications: 1 linked

Canonical product data

Specifications

Product Type: HP - Mini or Multi Split
Compressor Staging: Continuously variable
Connected Capable: No
Cooling Capacity (Mode: cooling): 9000 Btu/h
Eer2 (Mode: cooling): 14.4 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 12000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 12000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 10400 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 1.8
Hspf2 (Mode: heating): 15 Btu/(W.h)
Refrigerant With Gwp Claim: R-410A (GWP:2088)
Seer2 (Mode: cooling): 25.5 Btu/(W.h)
