Air-source heat pump

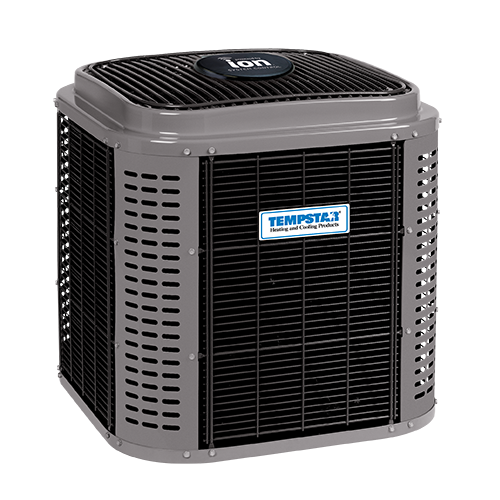

Tempstar T5H3V36*K*AAA*
- Category
- Air-source heat pump
- Series
- SmartSense 23 VS HP
- Model record
- Model pattern
- Certifications
- 1128 linked
Canonical product data
Specifications
- Product Type
- HP - Split System
- Compressor Staging
- Continuously variable
- Connected Capable
- No
- Cooling Capacity (Mode: cooling)
- 32200 Btu/h
- Eer2 (Mode: cooling)
- 11 Btu/(W.h)
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
- 31000 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 27200 Btu/h
- Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 1.98
- Hspf2 (Mode: heating)
- 9.5 Btu/(W.h)
- Refrigerant With Gwp Claim
- R-454B (GWP:470 | Lower GWP)
- Seer2 (Mode: cooling)
- 19.5 Btu/(W.h)
