Heat pump condensing unit

Back to Trane products

Trane Heat pump condensing unit 5HCL5036B1

Schedule Service Check Availability
Trane Trane AHRI Outdoor - 16 Multi-Speed Low Profile Cold Climate Heat Pump Heat pump condensing unit Repair, maintenance, and replacement planning

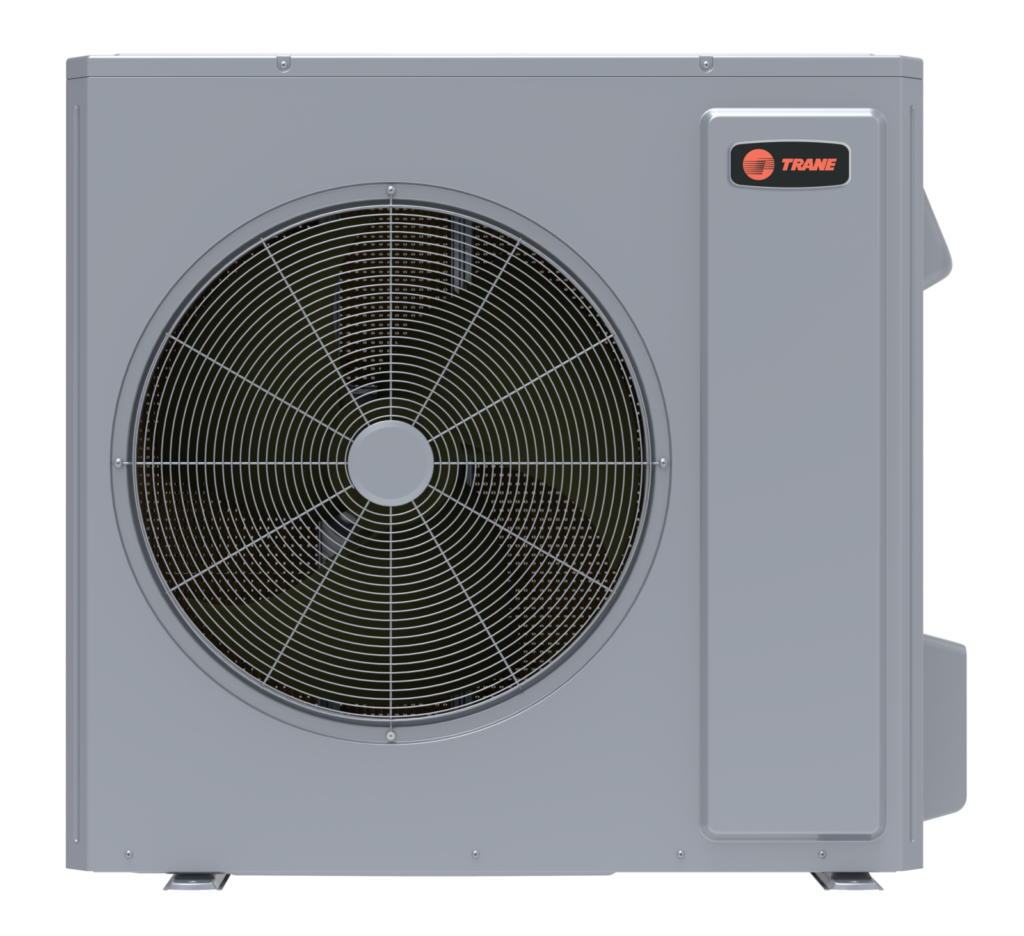

Trane 5HCL5036B1 product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: 5HCL5036B1
  • AHRI records represented: 23
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.8333333333333333
  • AHRI refrigerant: R-454B
  • Verified catalog model: 5HCL5036B1
  • Verified product family: 16 Multi-Speed Low Profile Cold Climate Heat Pump
  • Verified catalog brand: Trane
  • Verified model family: 5HCL50
  • AHRI model/pattern: 5HCL5036B1
  • Nominal capacity: 3 ton
  • Nominal cooling capacity: 36,000 BTU
  • Cooling efficiency family: up to 16 SEER2
  • Heating efficiency family: up to 8.1 HSPF2
  • Refrigerant: R-454B
  • Configuration: multi-speed cold-climate side-discharge low-profile outdoor heat pump
  • Dimensions listed in official model table: 37.8 in. H x 39 in. W x 14.6 in. D
  • Official product page: https://www.trane.com/residential/en/products/heat-pumps/choice-16-cold-climate-lp/
  • Official technical documentation: https://elibrary.tranetechnologies.com/public/residential-hvac/Literature/Product%20and%20Submittal%20Data/ODR-PSD038A-EN_12132025.pdf

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Troubleshooting

Troubleshooting and error codes

View error codes

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217500294

AHRI 217500294 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB003AC3.
Eligible Central HP <5.4 tons

AHRI 217500295

AHRI 217500295 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB005AC3.
Eligible Central HP <5.4 tons

AHRI 217500296

AHRI 217500296 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5TDM5B03AC21.
Eligible Central HP <5.4 tons

AHRI 217500297

AHRI 217500297 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5TDM5B04AC31.
Eligible Central HP <5.4 tons

AHRI 217590600

AHRI 217590600 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5TDM5C04AC31.
Eligible Central HP <5.4 tons

AHRI 218028063

AHRI 218028063 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB003AC3.
Eligible Central HP <5.4 tons

AHRI 218028064

AHRI 218028064 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB003AC3.
Eligible Central HP <5.4 tons

AHRI 218028065

AHRI 218028065 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB003AC3.
Eligible Central HP <5.4 tons

AHRI 218028066

AHRI 218028066 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB003AC3.
Eligible Central HP <5.4 tons

AHRI 218028067

AHRI 218028067 identifies a Mass Save qualified Central HP <5.4 tons from TRANE with outdoor unit 5HCL5036B1 and indoor unit 5DXCB003AC3.
Loading more

Service planning

How GreenFlow handles 5HCL5036B1 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
