Evaporator coil

Back to ACiQ products

ACiQ Evaporator coil EVD5X30M17A*

Request ServiceEquipment Quote
ACiQ ACiQ AHRI Indoor - EVD5X Vertical Cased V-Coil Evaporator coil Repair, maintenance, and replacement planning

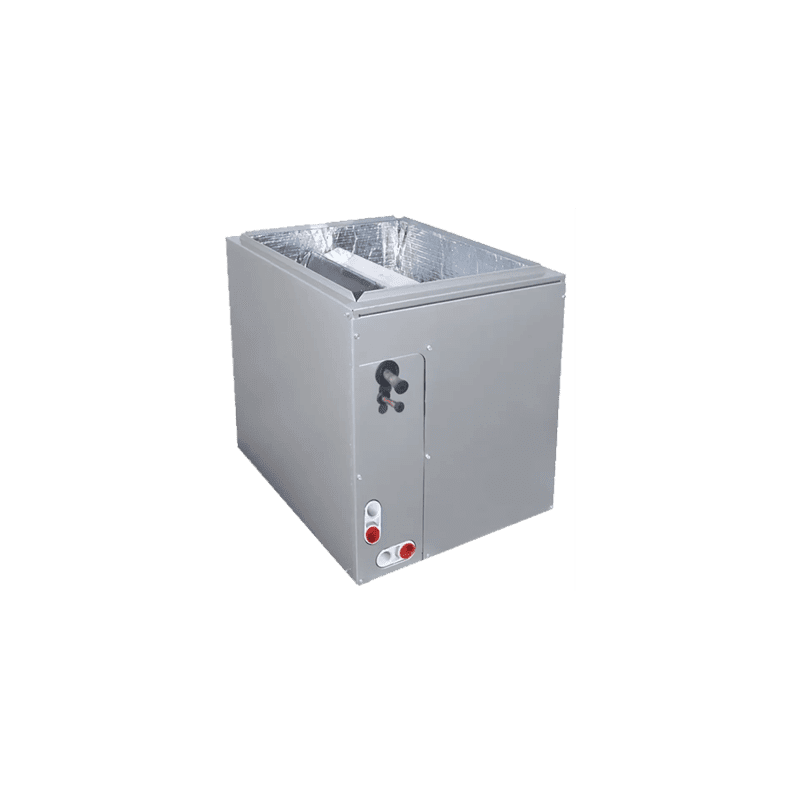

ACiQ EVD5X30M17A* product image

Technical Specifications

Product Specs

  • AHRI unit role: Indoor
  • AHRI model/pattern: EVD5X30M17A*
  • AHRI records represented: 39
  • AHRI equipment type: Central HP
  • AHRI tonnage: 2.033333333333333
  • AHRI refrigerant: R-454B
  • Verified catalog model: EVD5X30M17A*
  • Verified product family: EVD5X Vertical Cased V-Coil
  • Verified catalog brand: ACiQ
  • Verified model family: EVD5X
  • AHRI indoor model/pattern: EVD5X30M17A*
  • Nominal capacity: 2.5 ton
  • Nominal cooling capacity: 30,000 BTU nominal cooling capacity
  • Cabinet width code: 17 in.
  • Configuration: vertical cased V-coil
  • Airflow direction: upflow or downflow
  • Style: V-Coil
  • Metering device: factory-installed TXV
  • Refrigerant: R454B
  • Published range: 1.5 to 5 ton vertical V-coil
  • Cabinet: durable 24-gauge pre-painted steel cabinet
  • Spec sheet: https://aciq.com/wp-content/uploads/2025/02/EVD5X_Spec_Sheet_Updated.pdf
  • Installation manual: https://aciq.com/wp-content/uploads/2025/02/EVD5X_Installation_Manual.pdf
  • Warranty: 10-year parts limited warranty with online registration
  • Official product page: https://aciq.com/residential-products/central-heating-and-cooling-solutions/evaporator-coils/evd5x/

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 218020093

AHRI 218020093 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020095

AHRI 218020095 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020097

AHRI 218020097 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020099

AHRI 218020099 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020100

AHRI 218020100 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020102

AHRI 218020102 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020104

AHRI 218020104 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020105

AHRI 218020105 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020107

AHRI 218020107 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Eligible Central HP <5.4 tons

AHRI 218020109

AHRI 218020109 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit N5H9V24*K*AAA* and indoor unit EVD5X30M17A*.
Loading more

Service planning

How GreenFlow handles EVD5X30M17A* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
