ACiQ Heat pump condensing unit N5H8T60*K*AAA*

Schedule Service Check Availability
ACiQ ACiQ AHRI Outdoor - N5H9V 2-stage 18 SEER heat pump Heat pump condensing unit Repair, maintenance, and replacement planning

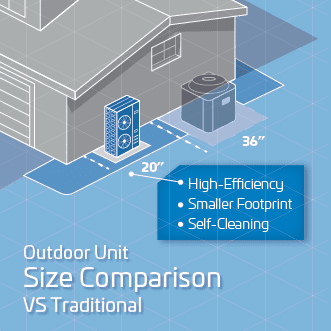

ACiQ N5H8T60*K*AAA* product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: N5H8T60*K*AAA*
  • AHRI records represented: 117
  • AHRI equipment type: HP - Split System
  • AHRI refrigerant: R-454B
  • Verified catalog model: N5H8T60*K*AAA*
  • Verified product family: N5H9V 2-stage 18 SEER heat pump
  • Verified catalog brand: ACiQ
  • Verified ENERGY STAR AHRI model: N5H8T60*K*AAA*
  • ENERGY STAR dataset: ENERGY STAR Certified Heat Pumps
  • Sample AHRI reference: 215561910
  • System manufacturer: Carrier Corporation
  • Outdoor unit brand: ACIQ
  • Series: 2-STAGE 18 SEER HP
  • Nominal capacity: 5 ton
  • Nominal cooling capacity: 60,000 BTU nominal cooling capacity
  • ENERGY STAR matched-system cooling capacity: 57,500 BTU/h
  • ENERGY STAR matched-system heating capacity at 47F: 57,500 BTU/h
  • ENERGY STAR matched-system heating capacity at 17F: 36,800 BTU/h
  • ENERGY STAR matched-system SEER2: 17.50
  • ENERGY STAR matched-system EER2: 13.00
  • ENERGY STAR matched-system HSPF2: 8.10
  • Compressor staging: Two-stage
  • Refrigerant: R-454B (GWP:470 | Lower GWP)
  • ENERGY STAR certified date: 2025-02-17
  • ACiQ 60K public heat-pump product media: https://aciq.com/residential-products/high-efficiency-heating-and-cooling-solutions/high-efficiency-heat-pump-systems/high-efficiency-heat-pump-extreme-plus-series/aciq-60-pah-aciq-60-hpd/
  • ENERGY STAR source dataset: https://data.energystar.gov/d/83eb-xbyy

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
ENERGY STAR certified HP - Split System

AHRI 215561910

AHRI 215561910 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit FTMA5B60L0D*.
ENERGY STAR certified HP - Split System

AHRI 216631458

AHRI 216631458 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631459

AHRI 216631459 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631460

AHRI 216631460 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631461

AHRI 216631461 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631464

AHRI 216631464 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631465

AHRI 216631465 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631467

AHRI 216631467 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631469

AHRI 216631469 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
ENERGY STAR certified HP - Split System

AHRI 216631477

AHRI 216631477 identifies a Mass Save qualified HP - Split System from ACIQ with outdoor unit N5H8T60*K*AAA* and indoor unit EVM5X60M21A*.
Loading more

Service planning

How GreenFlow handles N5H8T60*K*AAA* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
