Carrier Heat Pump ® Toshiba Ductless Variable Flow (VRF) 7000 Btu Indoor Heat Pump Slim Duct Unit (230/208-1-60)

Request ServiceEquipment Quote
Carrier Commercial Heat Pump - MMD-AP Heat Pump Repair, maintenance, and replacement planning

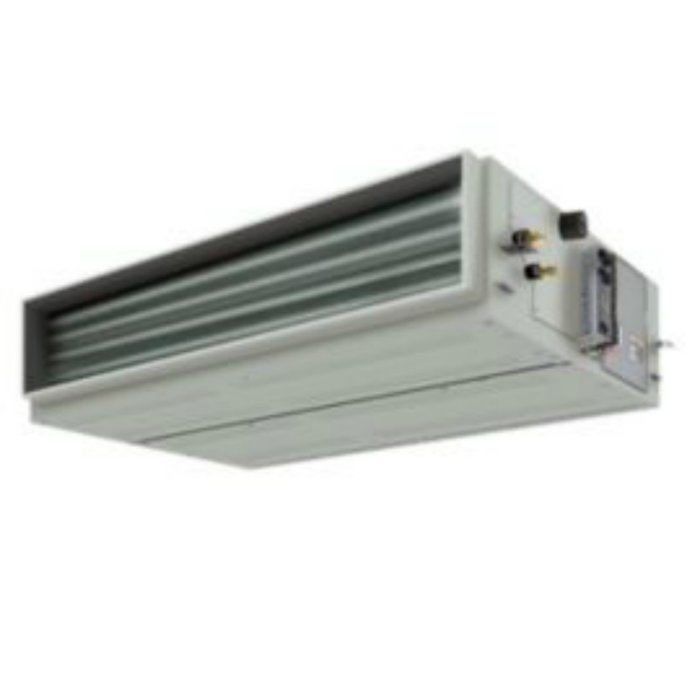

Carrier® Toshiba Ductless Variable Flow (VRF) 7000 Btu Indoor Heat Pump Slim Duct Unit (230/208-1-60) product image

Technical Specifications

Product Specs

  • Model: MMD-AP0074SPH2UL
  • Manufacturer Number: MMD-AP0074SPH2UL
  • Vendor Number: MMD-AP0074SPH2UL
  • Catalog Brand: Toshiba Carrier
  • Product Family: MMD-AP
  • AHRI Usage: Indoor AHU
  • Approvals: ETL Listed
  • Blower Motor Speeds: 3
  • Brand: Toshiba Carrier
  • CFM: 235-318
  • Color: Gray
  • Cooling Capacity: 7,500
  • Country Of Origin: JPN
  • Cubic Measurement: 8.9865
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: NO
  • Heating Capacity: 8,500
  • Height: 12.5
  • Length: 30.3
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 1/4"
  • Maximum Overcurrent Protection (MOCP): 15
  • Mounting Type: Concealed Ducted
  • OPT Code: 1PMMD-AP0074SPH2UL
  • Phase: Single
  • Prop 65: YES
  • Refrigerant: R-410A
  • Sound Level (dBA): 28-39
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 3/8"
  • Tonnage: 0.58
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 62
  • Width: 41

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Toshiba Ductless Variable Flow (VRF) 7000 Btu Indoor Heat Pump Slim Duct Unit (230/208-1-60) requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
