Carrier Heat Pump ® Toshiba Ductless 18,000 Btu Heat Pump Single-Zone Inverter 208/230-1

Request ServiceEquipment Quote
Carrier Residential Heat Pump - RAV Heat Pump Repair, maintenance, and replacement planning

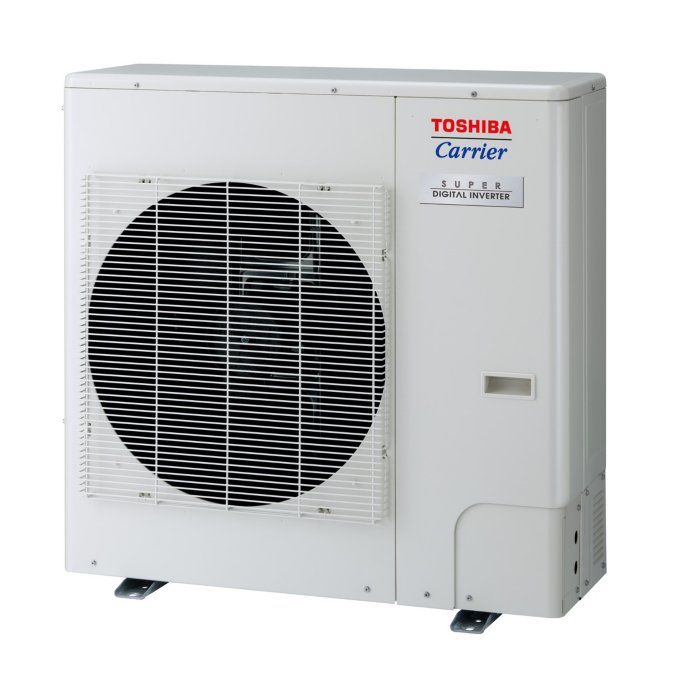

Carrier® Toshiba Ductless 18,000 Btu Heat Pump Single-Zone Inverter 208/230-1 product image

Technical Specifications

Product Specs

  • Model: RAV-SP180AT2-UL
  • Manufacturer Number: RAV-SP180AT2-UL
  • Vendor Number: RAV-SP180AT2-UL
  • Catalog Brand: Toshiba Carrier
  • Product Family: RAV
  • AHRI Usage: Outdoor
  • Brand: Toshiba Carrier
  • Color: White
  • Cooling Capacity: 19,000
  • Cooling Rated Capacity Btu/h: 19000
  • Country Of Origin: USA
  • Cubic Measurement: 4.395
  • Cycle/Hertz: 60 Hz
  • Dimensional Weight: 54
  • EER: 10.7
  • Energy Star Rated: NO
  • HSPF: 11.5
  • Heating Capacity: 18,800
  • Height: 21.7
  • High Heat: NO
  • Length: 11.4
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 1/4"
  • Maximum Overcurrent Protection (MOCP): 30
  • Maximum Piping Height: 98.5
  • Maximum Piping Length: 164' 1"
  • Number Of HVAC Zones: 1
  • OPT Code: 1PRAV-SP180AT2-UL
  • Phase: Single
  • Prop 65: YES
  • Rated Current Amps (RCA): 17
  • Refrigerant: R-410A
  • Refrigerant Charge: 3.1
  • SEER: 20.5
  • Stages Cooling: 1
  • Stages Heating: 1
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 1/2"
  • Tonnage: 1.5
  • UOM: EA
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 98
  • Width: 30.7

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Toshiba Ductless 18,000 Btu Heat Pump Single-Zone Inverter 208/230-1 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
