KeepRite Heat pump condensing unit C5H6S24*K*AAA*

Schedule Service Check Availability
KeepRite KeepRite AHRI Outdoor - Ion 16 Heat Pump Heat pump condensing unit Repair, maintenance, and replacement planning

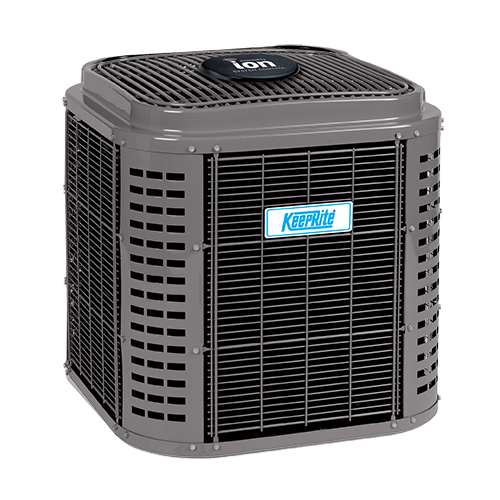

KeepRite C5H6S24*K*AAA* product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: C5H6S24*K*AAA*
  • AHRI records represented: 193
  • AHRI equipment type: HP - Split System
  • AHRI refrigerant: R-454B
  • Verified catalog model: C5H6S24*K*AAA*
  • Verified product family: Ion 16 Heat Pump
  • Verified catalog brand: KeepRite
  • Verified model family: C5H6S
  • AHRI model/pattern: C5H6S24*K*AAA*
  • Nominal capacity: 2 ton
  • Nominal cooling capacity: 24,000 BTU nominal cooling capacity
  • Cooling efficiency: up to 16 SEER2
  • Heating efficiency: up to 7.8 HSPF2
  • Compressor: single-stage scroll
  • Refrigerant: R-454B
  • Sound level: as low as 67 dBA
  • Capacity range: 1.5-5 tons within the official family
  • Official product page: https://www.keeprite.com/en/us/products/heat-pumps/ion-heat-pump-5h6s

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
ENERGY STAR certified HP - Split System

AHRI 214151909

AHRI 214151909 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214151917

AHRI 214151917 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214151933

AHRI 214151933 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214151957

AHRI 214151957 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214152381

AHRI 214152381 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214152397

AHRI 214152397 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214152453

AHRI 214152453 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214152461

AHRI 214152461 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214152509

AHRI 214152509 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214152517

AHRI 214152517 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit C5H6S24*K*AAA* and indoor unit EA*5X37M21A*.
Loading more

Service planning

How GreenFlow handles C5H6S24*K*AAA* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
