KeepRite Heat pump condensing unit R5H5S24*K*AAA*

Schedule Service Check Availability
KeepRite KeepRite AHRI Outdoor - R-Series 16 SEER2 Heat Pump Heat pump condensing unit Repair, maintenance, and replacement planning

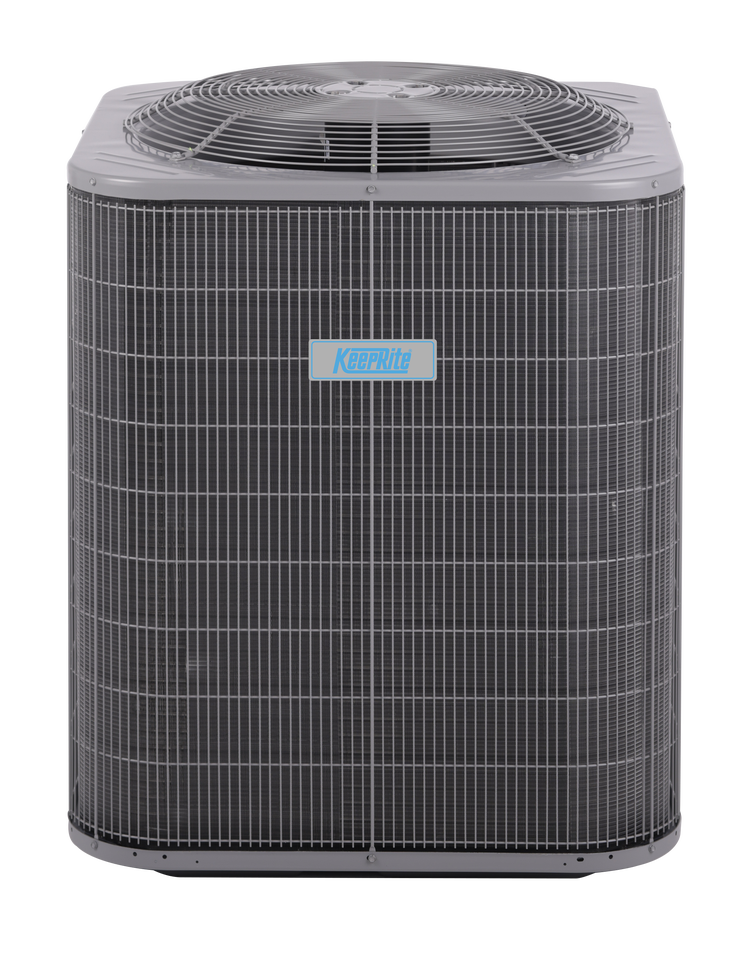

KeepRite R5H5S24*K*AAA* product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: R5H5S24*K*AAA*
  • AHRI records represented: 187
  • AHRI equipment type: HP - Split System
  • AHRI refrigerant: R-454B
  • Verified catalog model: R5H5S24*K*AAA*
  • Verified product family: R-Series 16 SEER2 Heat Pump
  • Verified catalog brand: KeepRite
  • Verified model family: R5H5S
  • AHRI model/pattern: R5H5S24*K*AAA*
  • Nominal capacity: 2 ton
  • Nominal cooling capacity: 24,000 BTU nominal cooling capacity
  • Cooling efficiency: up to 16 SEER2
  • Heating efficiency: up to 7.8 HSPF2
  • Compressor: single-stage scroll
  • Refrigerant: R-454B
  • Sound level: as low as 68 dBA
  • Capacity range: 1.5-5 tons within the official family
  • Official product page: https://www.keeprite.com/en/us/products/heat-pumps/r-series-r5h5s

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
ENERGY STAR certified HP - Split System

AHRI 214130865

AHRI 214130865 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214130893

AHRI 214130893 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214130945

AHRI 214130945 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214131038

AHRI 214131038 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X25M17A*.
ENERGY STAR certified HP - Split System

AHRI 214132642

AHRI 214132642 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214132694

AHRI 214132694 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214132916

AHRI 214132916 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214132944

AHRI 214132944 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214133121

AHRI 214133121 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X37M17A*.
ENERGY STAR certified HP - Split System

AHRI 214133146

AHRI 214133146 identifies a Mass Save qualified HP - Split System from Keeprite with outdoor unit R5H5S24*K*AAA* and indoor unit EA*5X37M21A*.
Loading more

Service planning

How GreenFlow handles R5H5S24*K*AAA* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
