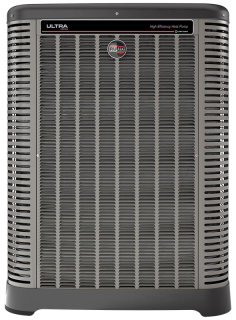

Ruud UP19AY24AJVC

Request Service Equipment Quote

Category: Air-source heat pump
Series: ULTRA SERIES
Model record: Exact model
Certifications: 36 linked

Canonical product data

Specifications

Product Type: HP - Split System
Communication Hardware Architecture: B - Manufacturer-specific external communication module(s) and/or device(s)
Compressor Staging: Continuously variable
Connected Capable: Yes
Connects Using: Wi-Fi
Cooling Capacity (Mode: cooling): 22800 Btu/h
Demand Response Requires Broadband: Yes
Dr Protocol: OpenADR
Eer2 (Mode: cooling): 13 Btu/(W.h)
Features Enabled By Primary Communication Module: Demand response via OpenADR with cloud-based VEN, User amenity (e.g. real time power reporting, remote management, user settings and messages)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 19500 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 21200 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 22800 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 1.9
Hspf2 (Mode: heating): 9.5 Btu/(W.h)
Installation Capabilities: Airflow measurement or external static pressure, Automatic system discovery, Refrigerant charge verification, Test mode for manual measurements
Refrigerant With Gwp Claim: R-454B (GWP:470 | Lower GWP)
Seer2 (Mode: cooling): 20 Btu/(W.h)
